Troxus Trax Plus 500/15
$1 899.00
Call for Availability
was $2 199.00 Save $300.00
Color
Size
Frame Design
Call for Availability
Save this product for later

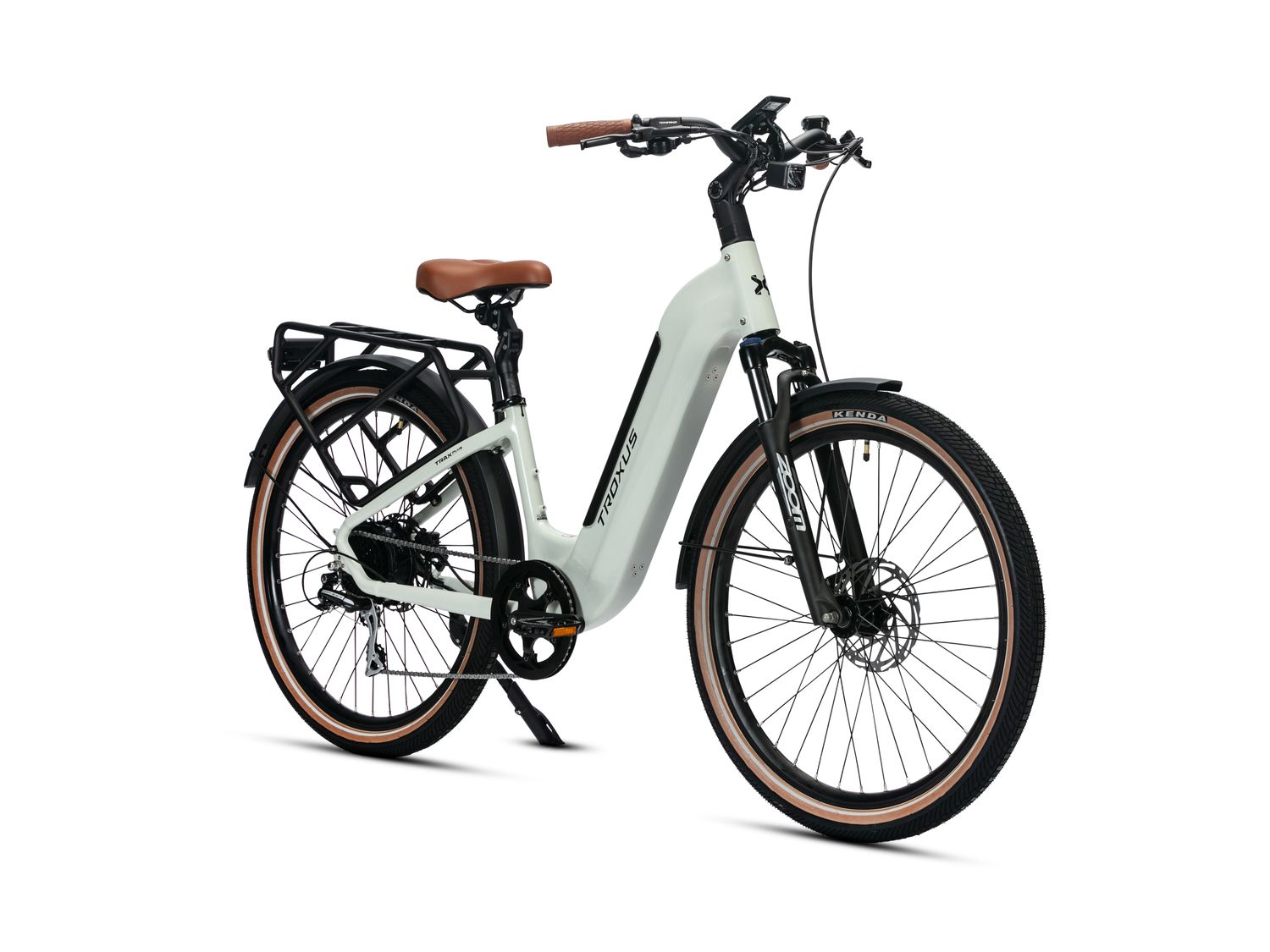

Troxus Trax Plus 500/15
Product Details
The Trax Plus 500W/15Ah is a high-performance e-bike built to dominate city streets and rough urban routes alike. With a powerful 500W motor and a 720Wh battery that just keeps going, it’s ready for everything from steep hills to long-haul rides. The smooth suspension seat post means you’ll ride in comfort—even when the road gets bumpy.
Whether you're zipping through traffic or exploring new shortcuts, the Trax Plus makes every trip feel like the fun part of your day.
Specs
Motor
- Ananda® 48V/500W Hub-Drive Motor, 65Nm Max. Torque
Battery
- UL-2771 Certified / Internal / Removable / Lithium Ion, 48V/15Ah (720Wh) with Samsung® Cells
Display
- Color Display, Bluetooth, w/ Turn Light Signals, w/ Multi-Function Remote
Throttle
- Thumb Throttle on Handlebar
Sensor
- Switchable Torque And Cadence Sensor Modes
Pedal Assist
- 0~5 Level Pedal Assist
Charger
- 2A / 100-240V Input / 54.6V Output
Lights
- 80 Lux Front Light, Rear Light w/ Turn & Hazard Signals
Controller
- 48Vx18A/12V
Frame
- Hydroformed Aluminum Frame
Fork
- Zoom® Front Suspension Fork, 65mm Travel
Chain
- KMC® 1/2"x3/32"
Crankset
- Aluminum, 46T, w/ Single Alloy Chainguard, Square Taper, 170mm
Rear Derailleur
- Shimano® RD-M310-L, Altus, 8-Speed
Cassette
- Shimano 8-Speed, 12-32T
Shifter
- Shimano® 8-Speed
Bottom Bracket Set
- Square Taper Sealed Bearings, Torque & Cadence Sensors Included
Tires
- KENDA® 27.5"x2.2", w/ Reflective Stripes, Puncture-Resistant, E-50 Rated
Front Hub
- Alloy, 36H, 100mm, 3/8"Axle w/ Nuts
Rear Hub
- 48V 500W/ 28 MPH. 65Nm
Rims
- Alloy Single Wall Front / Double Wall Rear, 36H, 27.5"x2.2", w/ Eyelets
Spokes
- Stainless 13G. Front / 12G. Rear
Brakes
- Tektro® Hydraulic, w/ Brake Sensors
Rotors
- 180mm / 180mm
Saddle
- DDK DE-430 Comfort / 200mm Wide
Seat Post
- Troxus w/ Suspension, Alloy 30.9x400mm, Adjustable
Seat-Post Clamp
- Alloy, 35mm w/ Quick Release
Stem
- Zoom® Alloy, Forged, Adjustable, TDS-D634B-8/FOV, Ext. 90mm, ICR type w/ Internal Cable Routing
Handlebar
- Zoom® Alloy, 31.8mmx620mm, 35˚ Backsweep
Grips
- Ergonomic Comfort
Pedals
- Alloy, 9/16"axles, w/ BS reflectors
Headset
- Gyneyea T192KS-56, Threadless 57/56mm, W/ Internal Cable Routing
Performance Details
- Max Speed: Up To 20 MPH on Throttle / Up To 28 MPH on Pedal Assist
- Range: Up To 70 Miles Per Charge
- Weight Limit: Maximum Load: 383 lbs
- Net Weight: 68.5 lbs
- Rack: Alloy Rear Model/ MIK-Compatible Rear Rack
- Fenders: Alloy, 27.5", Full coverage
- Kickstand: Adjustable Side Kickstand
- Packaged: Above All Accessories Are Included.
