ST5+
$1 774.00
Get More for Less
was $1 999.00 Save $225.00
Color
Size
Price includes CO Tax Credit; valid for CO residents only.
In stock
ST5+
Product Details

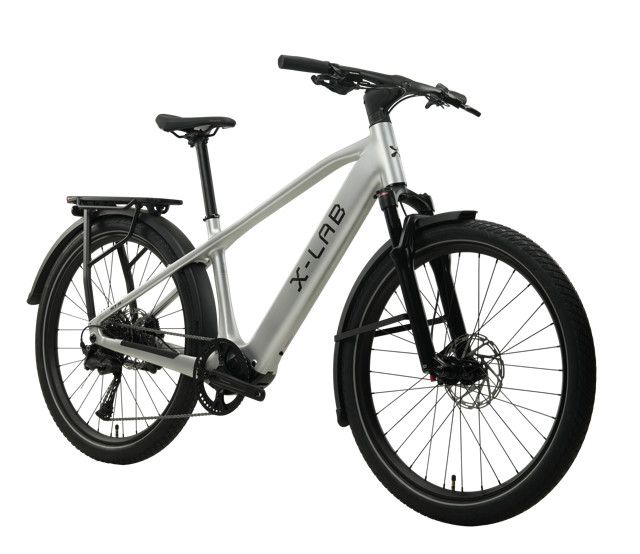

X-LAB ST5+ Mid-Drive Electric Bike
High-Torque Commuter Powerhouse | Available at Elevated Ebikes in Arvada, CO
Built for commuters and weekend explorers who need serious hill-climbing power across the Front Range, the X-LAB ST5+ pairs a massive 95Nm mid-drive motor with smart anti-theft connectivity. Whether you are conquering steep climbs up toward Golden, cruising along the Clear Creek and Ralston Creek Trails, or replacing daily car trips through Arvada and downtown Denver, the ST5+ delivers raw power, utility, and refined riding dynamics.
Engineered on a lightweight XDS X6 alloy frame with an 80mm front suspension fork and wide 2.4-inch CST tires, the ST5+ smooths out cracked city pavement and gravel connector tracks with ease. Out of the box, it operates as a Class 2 e-bike with both pedal-assist and throttle support, and can easily be unlocked to Class 3 speeds via the X-LAB mobile app for faster suburban travel.
Colorado E-Bike Rebate & Tax Credit Savings
Elevated Ebikes is an authorized participating dealer for the Colorado E-Bike Program.
- Instant $225 State Tax Credit: All Colorado residents receive an automatic $225 point-of-sale discount at checkout.
- Income-Qualified Vouchers: Stack additional Colorado state rebates for total savings of up to $1,000–$1,525.
- Zero Hassle: Bring your voucher or proof of residency to our Arvada store, and we will process the credit instantly on your purchase.
Technical Specifications
| Feature | Specification |
| eBike Class | Class 2 (20 mph Throttle + Assist); Unlockable to Class 3 via Mobile App |
| Motor | XDS Mid-Drive X800 (250W Continuous, 470W Peak, 95 Nm Peak Torque) |
| Sensor | Dual-Sided Torque Sensor |
| Battery | XDS 619Wh Li-ion with LG Cells (3A Charger, 5-hour full charge) |
| Estimated Range | Up to 75 miles per charge |
| Drivetrain | 9-Speed Shimano CUES RD-U4000 (11-46T wide-range cassette) |
| Brakes | Branta EC4D 4-Piston Hydraulic Disc Brakes w/ Motor Cutoff Switches |
| Rotors | 180mm Front / 180mm Rear |
| Fork | XDS Suspension Fork, 80mm Travel with 110x15mm Thru-Axle |
| Tires | CST CTC-06 27.5" x 2.4" with Reflective Sidewall Stripe |
| Cargo & Load | MIK-HD Heavy-Duty Rear Rack + Fenders Included; 330 lbs Total Capacity |
| Smart Tech | Built-in Apple Find My™ Anti-Theft, Quad Lock Phone Mount, Bluetooth, OTA Updates |
| Cockpit / Display | Branta Integrated Handlebar/Stem with Built-in Display & Headlight |
| Weight | 54.58 lbs (24.76 kg) |
| Certifications | UL 2849 & UL 2271 Certified; IP54 Bike / IPX7 Battery Water-Resistance |
Why Buy Your X-LAB ST5+ from Elevated Ebikes?
Skip the hassle of boxed shipping and unguided assembly. At Elevated Ebikes in Arvada, you get complete local support and expert care across the Denver Metro region:
- Ready-to-Ride Assembly: Built, tuned, and safety-inspected on-site by our certified technicians.
- Local Test Rides: Experience the 95Nm mid-drive torque on real hills near our shop before deciding.
- Ongoing Local Care: Comprehensive warranty assistance, mobile app setup, battery diagnostics, and service right here in Jefferson County.
Location: 5889 Lamar St, Arvada, CO 80003
Phone: (303) 558-2288
