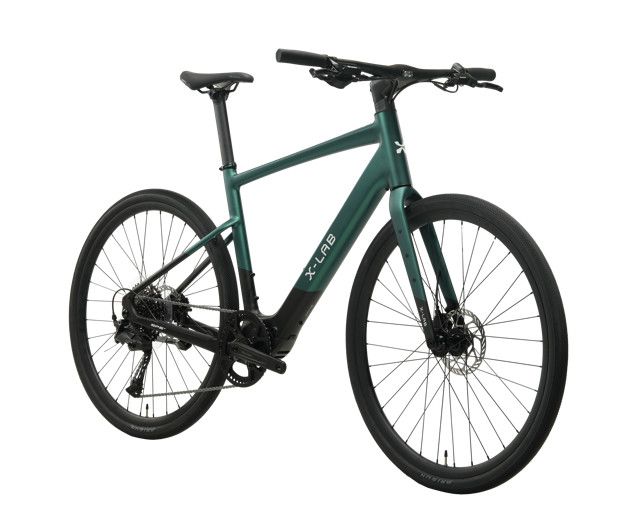

SP5+

Frame

• XDS X6 Alloy Frame, UDH Compatible

Fork

• XDS Carbon Fork, 100x12mm Thru-axle

Handlebar / Stem

• Branta Alloy Integrated, with Display & Front Light
• 680mm Width, 90mm Length, 6° Rise, 9° Backsweep

Seatpost

• XDS Alloy Seatpost, Aero Shape, 350mm Length

Rear Derailleur

• Shimano Cues RD-U4000, 9-Speed

Shifter

• Shimano Cues 9-Speed

Brakes

• Branta EC215D Hydraulic E-Bike Brake
• Features: Cutoff Switch, 3-Finger Lever, 2-Piston Caliper

Cassette

• Shimano CS-LG300 11-46T, 9-Speed

Crankset

• Branta Alloy Crankset, 46T, Narrow-wide Teeth

Motor

• XDS Mid-drive X800 Motor
• 250 Watt Continuous Rated Power
• 400 Watt Peak Power
• 85Nm Peak Torque
• Dual-sided Torque Sensor

Battery

• XDS Rechargeable Li-ion Battery
• 339Wh with LG Battery Cells
• 3A Charger (0-100% in 3 hours 15 minutes)

Lights

• Integrated Front and Rear Lights (+ Brake Lights)

Speed

• Pedal-assist and Throttle
• Class 2: 20mph
• Unlock to Class 3 via the X-Lab Bikes Mobile App

Range

• Ride up to 50 miles on a single charge

Testing and Compliance

• UL2271 and UL2849 Certified
• Ingress Ratings:
  • Complete Bike: IP54
  • Battery: IPX7
  • Motor and Other Electronics: IPX6

Load Capacity

• Max Load: 265 lbs (120 kg)

Connectivity

• Apple Find My Anti-Theft Technology
• Bluetooth
• OTA Updates

Rotors

• Branta Z8: Front 160mm, Rear 160mm

Chain

• KMC E-GLIDE-S

Wheelset

• Branta Alloy E-Bike Wheelset

Tires

• Branta R240, 700x40C, 30TPI
• Max Tire Clearance: 45C with Full-Wrapped Fender

Saddle

• Branta SRX+

Phone Holder

• Quad Lock Mount

Weight

• 16.79 kg / 37.01 lbs (Size L)

Size Options

• S / M / L
