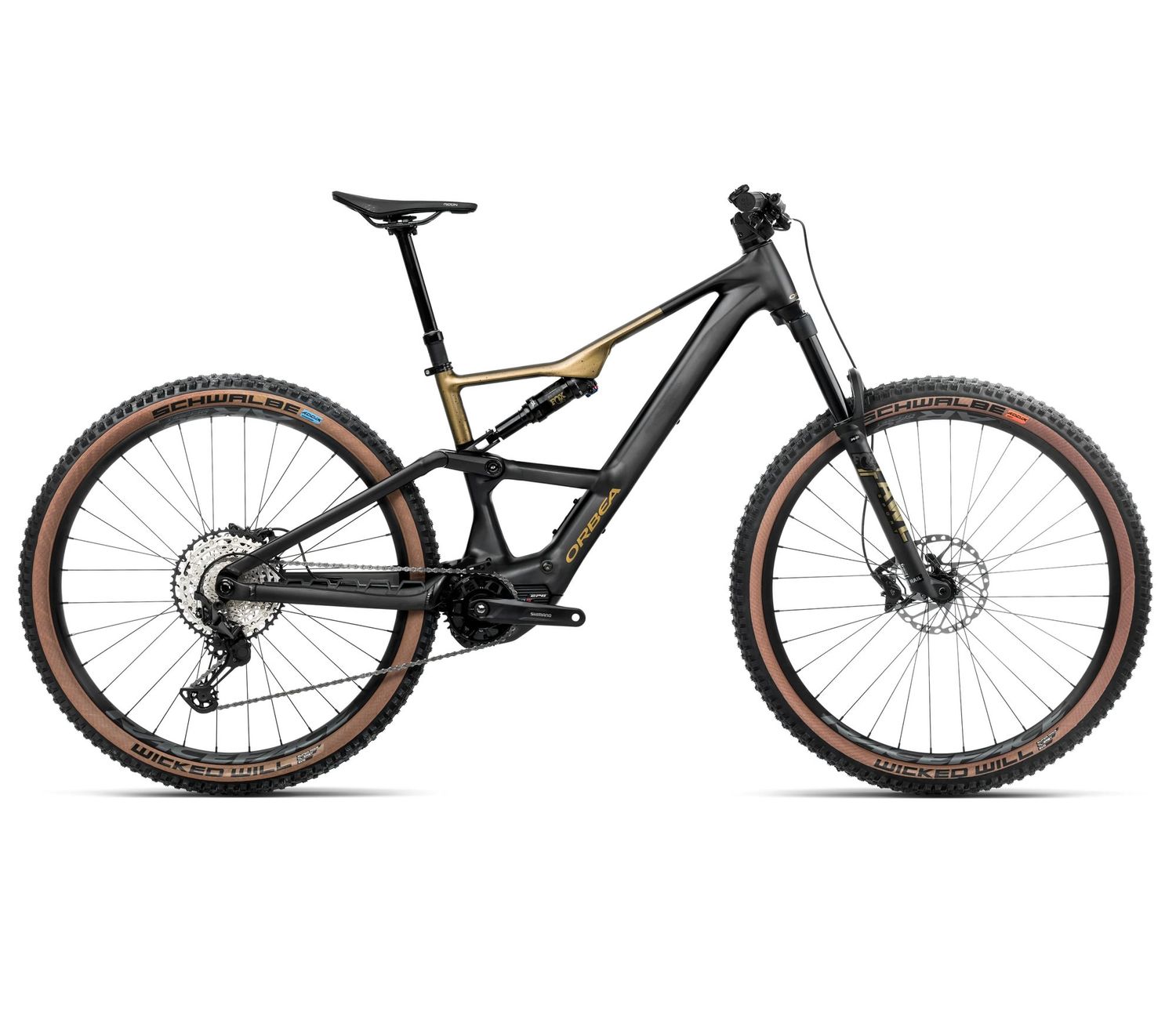

Rise SL H20 Diamond Black-Splash Olive Green (Matt) Large (DEMO)

Frameset

Frame: Orbea Rise LT Hydro 2025, 150mm travel, 29" wheels, Concentric Boost 12x148
Shock: Fox Float Performance 2-Pos Evol LV custom tune 210x55mm
Fork: Fox 36 Float AWL HD Sport 160 Rail QR15x110
Steerer tube: Alloy 1-1/2", Black Oxidated Bearing

Ebike

Battery: Orbea Internal 630Wh
RANGE EXTENDER: N/A
Motor: Shimano EP600 RS Gen2 MC
Display: N/A
CHARGER: Orbea 2.Generation eBike Smart charger 42V/2-4A
Remote: EN600-L

Drivetrain

Chainring: ethirteen Helix Core espec Direct Mount 32T 55mm ChainLine
Crank: Shimano Steps EM600
Shifters: Shimano Deore M6100 I-Spec EV
Cassette: Shimano CS-M7100 10-51t 12-Speed
Rear derailleur: Shimano SLX M7100 SGS Shadow Plus
Chain: Shimano M6100
Chainguide: Orbea eBike chainguide

Cockpit

Handlebar: OC Mountain Control MC31, Rise20, Width 800
Stem: OC Mountain Control MC20, 0º
Computer Mount: OC Computer Mount CM-05, Garmin/Sigma

Brakes

Brakes: Shimano MT420 Hydraulic Disc
Rotors: Galfer Wave Rotors 203mm front / 180mm rear
Brakes Configuration: N/A

Wheels

Wheels: Race Face AR 30c Tubeless Ready
Tyres:

• Maxxis Assegai 2.50" 60TPI 3CG/EXO+/TR MaxxGrip
• Maxxis Minion DHR II 2.40" WT FB 120 TPI 3C MaxxTerra Exo+ TR

Components

Seatpost: OC Mountain Control MC22, 31.6mm, Dropper
Seatpost Lever: Shimano SL-MT500 I-Spec EV
Saddle: Fizik Terra Ridon X5 145mm
Grips: OC Lock On

Accessories

Lights: N/A
Tools: N/A
