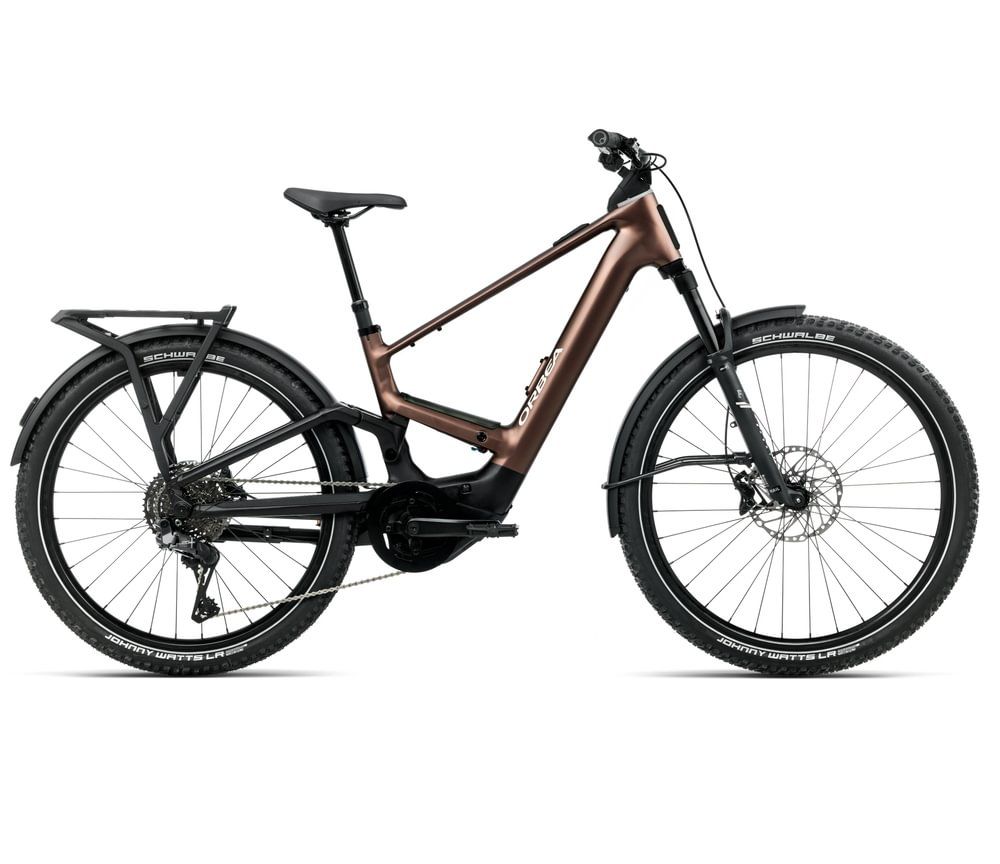

MUGA 20 28mph

Engineered for the long haul, Muga combines high-torque power with an expansive range and precision-tuned suspension to redefine your boundaries.

Frameset

• Frame: Orbea Muga 2026, Hydroformed Alloy 6061, OLD 148, Belt drive compatible, Orbea cockpit and equipment ecosystem, with Custom Kickstand, Carrier compatible.
• Shock: Fox Float Performance Trunnion 2-Pos custom tune 165x42.5mm.
• Fork: Fox 34 Float AWL Sport 120 Rail 2.0, Kabolt 15x110, Fender and ABS Mts.
• Steerer tube: FSA 1-1/2" Integrated Aluminium Cup.

Ebike

• Battery: Bosch Powertube 750Wh Horizontal BBP3775.
• Range Extender: N/A.
• Motor: Bosch Performance Line Speed CX BDU3883.
• Display: Bosch Purion 400.
• Charger: Bosch Charger 4A (110V) BPC3410.
• Remote: Bosch Mini Remote BRC3300.

Drivetrain

• Chainring: Alloy BDU37/38 46t.
• Crank: Prowheel EB03 alloy.
• Shifters: Shimano EN605-R.
• Cassette: Shimano CS-LG400 11-45t 11-Speed.
• Rear derailleur: Shimano Cues Di2 U8050 11s SGS Shadow Plus.
• Chain: KMC eGlide.

Cockpit

• Handlebar: Orbea Urban, Integrated light, Backsweep 9, Rise 30, Width 760.
• Computer Mount: Smartphone mount SP Connect SPC+.

Brakes

• Brakes: Shimano MT420 Hydraulic Disc.
• Brakes Configuration: N/A.

Wheels

• Wheels: Alloy, 26c, 32H.
• Tyres:
  • Schwalbe Johnny Watts LR, 60-622, Reflective Tape.
  • Schwalbe Johnny Watts LR, 60-584, Reflective Tape.

Accessories

• Pedals: VP-892 Black with reflectors.
• Front Carrier: N/A.
• Rear Carrier: Orbea RR-02 Alloy, with MIK HD and MIK Side and Ortlieb QL3.1 system. Max. 30Kg.
• Mudguard: Curana Apollo Orbit 70mm.
• Front Position Light: Orbea Integrated.
• Front Light: Supernova Starstream Pro, High Beam.
• Rear Light: Supernova TL3 Z.
• Quick Stand: Orbea Integrated.

Components

• Seatpost: OC Mountain Control MC22, 31.6mm, Dropper.
• Seatpost Lever: OC Dropper Remote for Sram Matchmaker.
• Saddle: Selle Royal Vivo Ergo.
